8kv Epr Insulation 3X4 + 2X8 +1X 8AWG Portable Cable

8kv Epr Insulation 3X4 + 2X8 +1X 8AWG Portable Cable image

Get Latest Price Request a quote

Product Details

Model NO.

SHD-GC

Application

Underground

Conductor Material

Copper

Insulation Material

Epr

Sheath Color

Yellow

Transport Package

Wooden Drum

Specification

3*4+2*8+8AWG

Trademark

yifang

Origin

Henan

Production Capacity

500, 000km/Month

Product Description

Epr Insulated Cable Trailing Cable

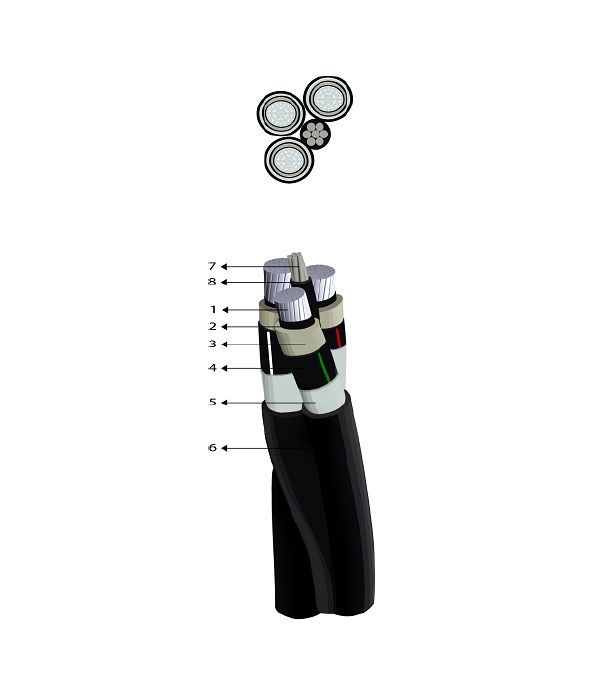

Cable Construction to top

Type SHD GC Power, Shielded Round Portable w/Ground Check, EPR/CPE, 25000 Volts, 90 C, Three Conductors Electrical Cable

Application

Trailing cable for AC mining equipment

Req’d Features

Flexible for ease handling

High dielectric strength

Electrical stability under stress

Low dielectric loss

Resist: Cutting, impact, abrasion, flame and sunlight

Excellent thermal stability and physical properties under a broad temperature range

Two layer jacket to provide maximum protection from mechanical damage

Conductor

4/0 AWG Coated annealed copper brunched wires, rope lay stranded per ASTM B172

Extruded Strand Shield (ESS)

Extruded thermosetting semi conducting stress control layer over conductor

Insulation

Ethylene Propylene Rubber (EPR) insulation

Insulation Shield

Extruded conducting layer covered by a conducting tape and a flexible coated copper textile braid shield overall

Ground Check Conductor

One annealed copper rope lay stranded per ASTM B172, insulated with high strength polypropylene.

Grounding Conductors

Two coated copper rope lay stranded per ASTM B172, in contact with the flexible copper braid shield

Jacket

Reinforced, two layers, extra heavy duty, lead cured Chlorinated Polyethylene (CPE)

Compliances

ICEA S75-381 Portable and Power Feeder Cables for use in mines

CAN/CSA C22.2 N 96 Portable Power cables

MSHA Flame test requirements.

Item	Description	Unit	Reference
1	Manufacture	—	ZHENGZHOU YIFANG CABLE CO., LTD
2	Standard	—	ICEA S75-381
3	Voltage	KV	8
4	Application		Underground mines
5	Power conductor
5.1	Conductor Materials	—	Soft Copper
5.2	Strands wire No./Dia.	Nos	259
5.3	Conductor Size	AWG	4
5.4	DC Resistance at 20ºC	Ω/km	0.9195
5.5	Core number	No.	3
6	Conductor screen
6.1	Materials		Semi-conducting layer over the conductor
7	Insulation
7.1	Insulation Materials	—	EPR
7.2	Nominal Insulation Thickness	mm	3.81mm
8	Insulation screen		Semi-conducting tape +Composite copper/polyamide braid
9	Ground conductor
9.1	Conductor Materials		Soft Copper
9.2	Strands wire No.s	Nos	133
9.3	Conductor Size	AWG	8
9.4	DC Resistance at 20ºC	Ω/km	2.2997
9.5	Core number		2core
10	Grounding Check Conductor
10.1	Conductor Materials	—	Soft Copper
10.2	Strands wire Nos	Nos	133
10.3	Conductor Size	AWG	8
10.4	DC Resistance at 20ºC	Ω/km	2.2997
10.5	Core number		1Core
10	Jacket
10.1	Jacket Material	—	CPE
10.2	Nominal Jacket Thickness	mm	5.5mm
10.3	Jacket Color	—	Yellow or Black
11	Approx. Cable Diameter	mm	51.26±4mm
12	Approx. weight of cable	Kg/km	3911

We are China 8kv Epr Insulation 3X4 + 2X8 +1X 8AWG Portable Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
