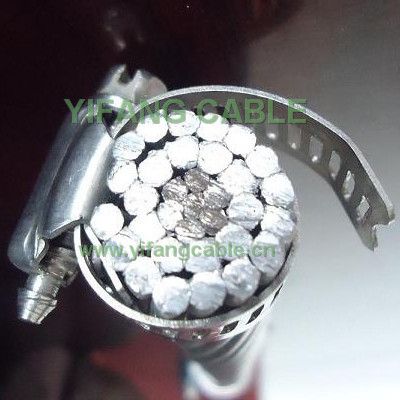

Bare ACSR Coyotg BS En 50182 Standard
Bare ACSR Coyotg BS En 50182 Standard image
Get Latest Price Request a quote
You May Like
Product Details
Model NO.
ACSR COYOTG
Application
Overhead
Conductor Material
Aluminum
Sheath Material
None
Insulation Material
None
Material Shape
Round Wire
Range of Application
Overhead Distributing Line
Certification
ISO9001, CE, CCC
Brand
Yifang Cable
Section Area
131.7mm2
Code Name
ACSR Coyotg
Material
Aluminum Condcutor
Strands
26+7 Strands
Standards
BS En 50182
Transport Package
Wooden Drum
Specification
1.1m size Drum
Trademark
Yifang Cable
Origin
China
HS Code
7614100000
Production Capacity
800km Per Month
Product Description
Bare ACSR COYOTG BS EN 50182 Standard
| Cable Specifications of ACSR COYOTG | ||||
| Item | Description | Unit | Data | |
| 1.1 | Cross section | Aluminium area | mm2 | 131.7 |
| Steel area | mm2 | 20.1 | ||
| Total | mm2 | 151.76 | ||
| 1.2 | Number of wires | Aluminium | / | 26 |
| Steel | / | 7 | ||
| 1.3 | Diameter of wire | Aluminium | / | 2.54 |
| Steel | mm | 1.91 | ||
| 1.4 | Conductor Diamter | mm | 15.89 | |
| Approx.Weight of conductor per km | kg/km | 520.90 | ||
| 1.4 | Max.D.C. Resistance at 20ºC | Ω/KM | 0.2191 | |
| 1.5 | Breaking load | kN | 45.86 | |
We are China Bare ACSR Coyotg BS En 50182 Standard manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Get Latest Price Request a quote
Tags: ACSR 131.7mm2, ACSR Coyotg
